TPU-Standard

◆Characteristics: Provides high mechanical strength, resistance to abrasion and solvent,                                               good processability and recyclability.

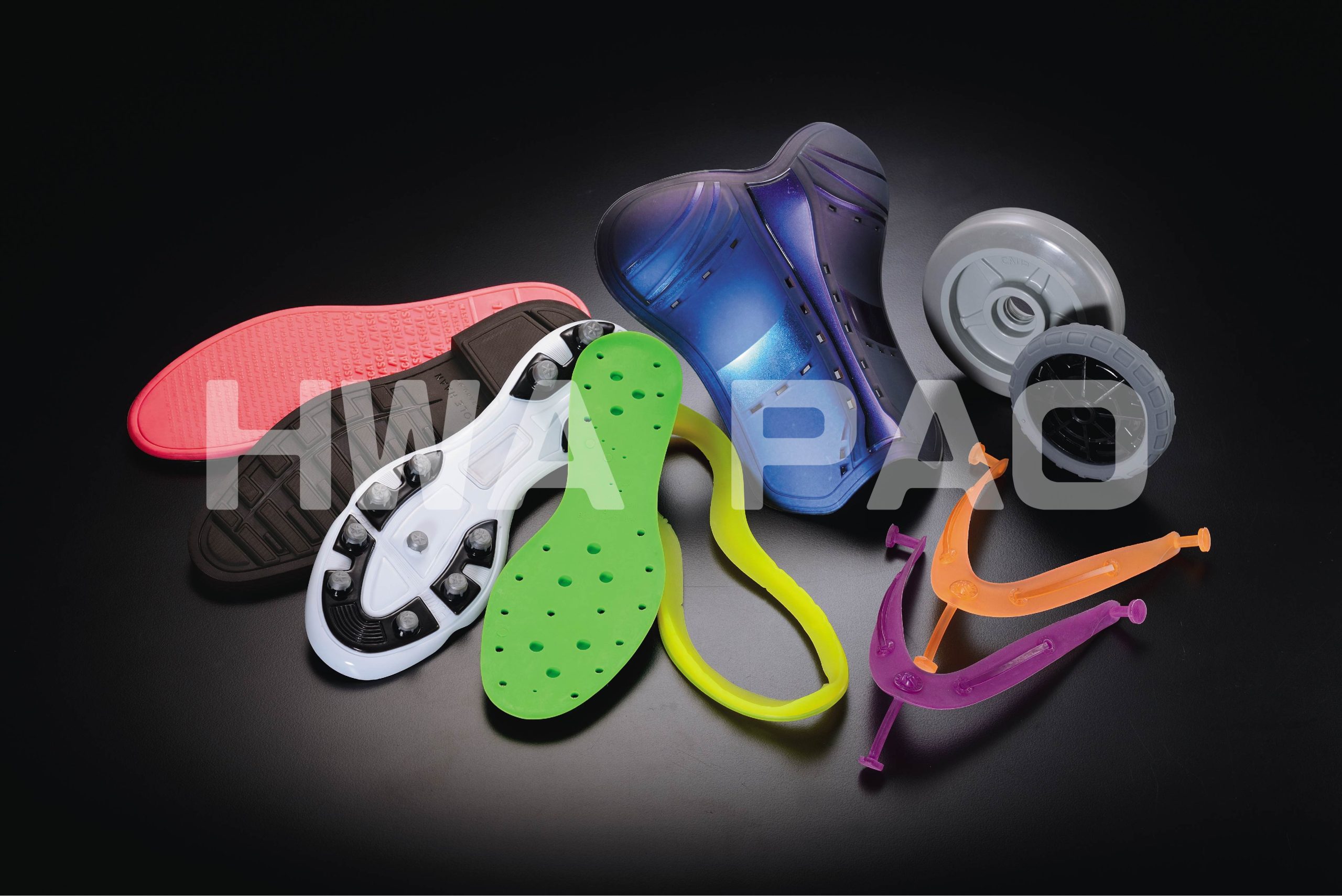

◆Applications: Sports soles, uppers, brand logos, wheels, gaskets, sports equipment,                                                 mechanical parts, and so on.

ITEM

 Property Method I-80AH14 I-85AH14 I-90AH14 I-95AH14 I-98AH14
Hardness ASTM D-2240 80±3A 85±3A 90±2A 95±2A 55±2D
Sp.Gr ASTM D-792 1.20±0.02 1.20±0.02 1.22±0.02 1.22±0.02 1.22±0.02
100% Modulus ASTM D-412 > 40 > 60 > 70 > 90 > 120
300% Modulus ASTM D-412 > 80 > 120 > 130 > 180 > 240
Tensile Strength ASTM D-412 > 250 > 250 > 270 > 300 > 330
Elongation ASTM D-412 > 500 > 500 > 500 > 500 > 450
Tear Strength ASTM D-624 > 60 > 80 > 100 > 130 > 160
Property Method I-60DH14 I-64DH14 I-71DH14 I-74DH14
Hardness ASTM D-2240 60±2D 64±2D 90±2A 71D±2D
Sp.Gr ASTM D-792 1.23±0.02 1.23±0.02 1.22±0.02 1.23±0.02
100% Modulus ASTM D-412 > 140 > 160 > 200 > 200
300% Modulus ASTM D-412 > 260 > 280 > 300 > 300
Tensile Strength ASTM D-412 > 350 > 350 > 360 > 370
Elongation ASTM D-412 > 500 > 400 > 350 > 350
Tear Strength ASTM D-624 > 60 > 200 > 230 > 250
REMARK
  • Our company can help to develop other products according to individual customers’requests.

  • The above-mentioned data are for reference only. Data will be changed based on individual customers’needs.
